REVIVE AUDIO, REV D M76, 1176 FET LIMITING AMPLIFIER, CINEMAG TRANSFORMER CLASSIC!

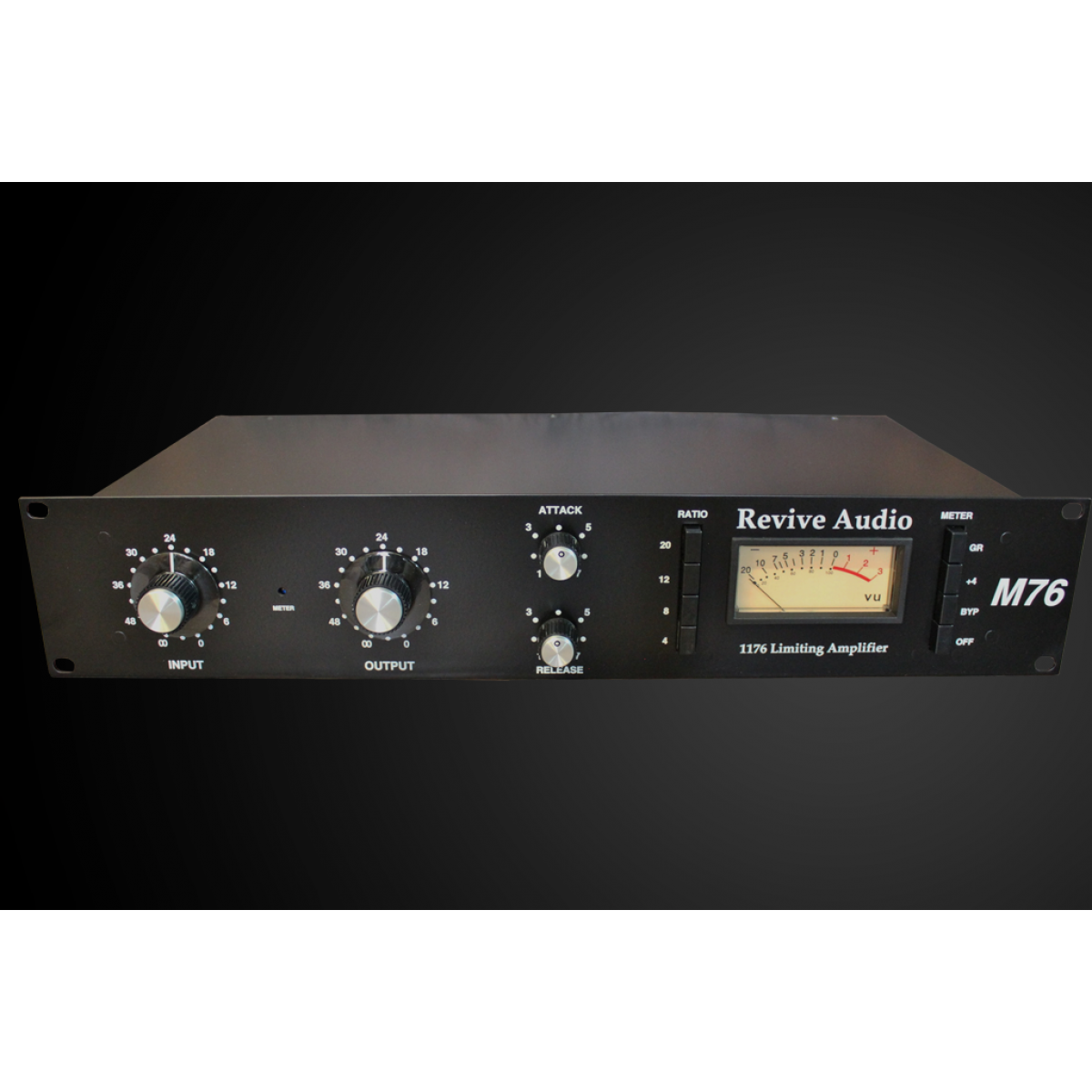

Revive Audio M76
1176 Fet Limiter/Compressor
Our Revive Audio M76 Fet Limiting amplifier is an authentic design from the classic revision D unit.
It is an all discrete design that sounds like an 1176 should, a great compressor that is smooth when compressing, has excellent bass response and makes you want to use it on everything!
Our current model uses Custom Cinemag transformers in conjunction with a custom designed Mu76 Mainboard. Cinemag was kind enough to design us an input transformer keeping the UTC-012 original design in mind while imparting that wonderful Cinemag tone and wonderful performance. The Revision D is often described as being the smoothest of all versions.
The M76 like most 1176's, functions differently than your average compressor in that there is no external threshold control. The user simply drives the input into the preset threshold to induce compression. This is not only one of the things that makes the 1176 sound so good, but also what makes it a mystery to some users. An interesting side note is that the line amp inside the card that drives the signal into compression can also be used in bypass as a mic preamp with around 45 Db of gain and is similar to the line amp used in the famous 1108 preamp of course without pad, phase or phantom.
These beautiful Fet Limiting Amplifiers are handmade here in our shop in the USA and are completely hand wired like all of our models.
Our M76 model comes with a full three year warranty and is built to the highest standard using the highest quality components.
Features:
- Custom Cinemag Transformer coupled input and output.
- Ratio: 4, 8, 12, 20:1, Slam (All buttons in mode).
- Variable input and output controls
- Variable attack and release controls
- VU selection: +4, Gain reduction, Bypass, Off
- All Discrete Transistor Design
- Sidechain input control for both inserting a key or simply linking two units together for stereo operation.
- High quality Panasonic, Vishay and Wima parts for all PCB mounted components
These are handmade in the USA, supports American Workers!
We are so confident you will enjoy your new Revive Audio unit we offer a return policy so you can try it out. If you are not satisfied with your purchase please return ships your unit within Five business days of receiving it. So if you receive your unit on a Friday you will have all weekend to play with it and it would need to be shipped back by Thursday. Please be aware that by purchasing this unit you are agreeing to these terms.
Please Feel free to contact our knowledgeable staff about our Vintage Audio product line
or see us on the web
ReviveAudio.com
208-473-2245
Monday thru Friday 9-4 P.M. M.S.T.
Terms of Return:
Item must be returned in the same condition it was sent.
Item is subject to restocking fees if returned with blemishes or damage.
 |
|
